Stainless Steel F316 Forged Flange Ball Valve (1-1/2"-600lb),RPTFE Seat Floating Forged Steel Ball Valve A105N F304 F316

Product Categories

STV Valve Technology Group Co.,Ltd

Contact Now

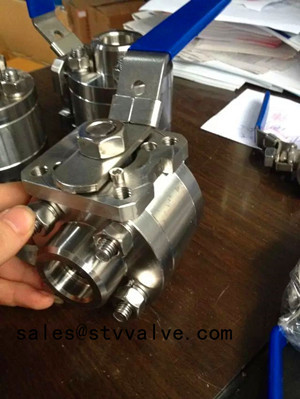

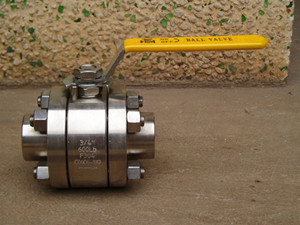

Stainless Steel F316 Forged Flange Ball Valve (1-1/2"-600lb),RPTFE Seat Floating Forged Steel Ball Valve A105N F304 F316

1
2
3

Buy cheap Stainless Steel F316 Forged Flange Ball Valve (1-1/2"-600lb),RPTFE Seat Floating Forged Steel Ball Valve A105N F304 F316 product

Buy cheap Stainless Steel F316 Forged Flange Ball Valve (1-1/2"-600lb),RPTFE Seat Floating Forged Steel Ball Valve A105N F304 F316 product

Buy cheap Stainless Steel F316 Forged Flange Ball Valve (1-1/2"-600lb),RPTFE Seat Floating Forged Steel Ball Valve A105N F304 F316 product

Place of Origin : china

Brand Name : stv

Certification : ISO9001

Model Number : STV-Q11F

Port Size : 25

Standard or Nonstandard : Standard

Structure : Ball

Pressure : High Pressure

Power : Manual

Material : Forged

Temperature of Media : High Temperature

Media : Water

Contact Now

orged steel flanged end 2PC ball valves-lever op.

Standard compliance:
1) Design and manufacture: BS5351
2) Test and inspection: API598
3) Face to face dimensions: ANSI B16.10
4) Socket weld end: ANSI B16.11
5) Screwed end: ANSI B1.20.1
6) Flanged end: ANSI B16.5
7) Fire safe: API607, API6FA

Specifications:
1) Size: 1/4" to 6"
2) Class: 150LB to 2500LB
3) Type: Floating ball, full bore or reduced bore, soft seated or metal seated, side entry, two-piece/three-piece
4) Material: A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, MONEL, ALLOY 20 etc
5) Operation: Lever.

Materials of body/bonnet and trim

Body/bonnet	WCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc.
Ball	SS304/SS316/S304L/SS316L
Seat	PTFE, NYLON, METAL TO METAL

Type of operation: lever, gear, electric or pneumatic actuator etc.

Standard materials of parts

No.	Parts	Materials
1	R-Body	ASTM A216 WCB
2	Bonnet bolt	ASTM A193 B7
3	Bonnet nut	ASTM A194 2H
4	Gasket	PTFE
5	L-body	ASTM A216 WCB
6	Ball	SS304
7	Seat ring	PTFE
8	Stem	ASTM A182 F6
9	Stem seat	PTFE
10	Stem packing	PTFE
11	Gland flange	ASTM A216 WCB
12	Lever	Cast Steel
13	Small ball	SS304
14	Small spring	SS304

Dimensions (in mm & inch) and weight
Class 150

DN	15	20	25	40	50	65	80	100	150	200	250	350
NPS	1/2	3/4	1	1.1/2	2	2.1/2	3	4	6	8	10	12
L(RF)	108	117	127	165	178	191	203	229	394	457	533	610
L1(BW)	140	152	165	190	216	241	283	305	457	521	559	635
L2(RTJ)	119	129.7	139.7	178	191	203	216	241	406	470	546	622
H	59	63	75	95	153	165	195	213	272	342	495	622
Do (W)	130	130	160	230	400	400	600	850	1100	1500	*350	*350
RF (Kgs)	2.3	3	4.5	7	15	20	25	40	97	160	240	390
BW (Kgs)	2	2.5	3.8	5.8	12	17	21	36	92.8	154	227	365

DN	15	20	25	40	50	65	80	100	150	200
NPS	1/2	3/4	1	1.1/2	2	2.1/2	3	4	6	8
L(RF)	140	152	165	190	216	241	283	305	403	502
L1(BW)	140	152	165	190	216	241	283	305	457	521
L2(RTJ)	151	164.7	177.7	202.7	232	257	298	321	419	518
H	59	63	75	107	153	165	195	213	272	342
Do (W)	130	130	160	230	400	400	600	850	1100	1500
RF (Kgs)	2.5	3.5	5.5	10.5	20	25	31	52	118	200
BW (Kgs)	2.1	3	4.8	8.7	17	22	28	48	105	185

DN	15	20	25	40	50	65	80
NPS	1/2	3/4	1	1.1/2	2	2.1/2	3
L(RF)	165	190	216	241	292	330	356
L1(BW)	165	190	216	241	292	330	356
L2(RTJ)	163.4	190	216	241	295	333	359
H	59	63	75	107	153	165	195
Do(W)	130	160	160	230	600	850	1250
RF (Kgs)	7.5	10.5	14.5	18.5	38	56	66
BW (Kgs)	6	8.7	11	14.7	31	49	58
