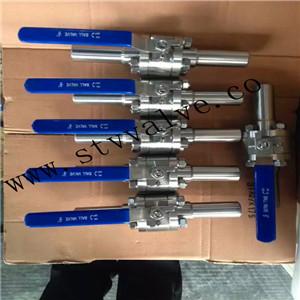

2PC A105 Forged Ball Valve with Extended Pipe

Place of Origin : china

Brand Name : stv

Certification : ISO9001

Model Number : STV-Q11F

Standard or Nonstandard : Standard

Structure : Ball

Pressure : High Pressure

Power : Manual

Material : Forged

Temperature of Media : High Temperature

Media : Water

Port Size : 25

Contact Now

orged steel flanged end 2PC ball valves-lever op.

Standard compliance:
1) Design and manufacture: BS5351
2) Test and inspection: API598
3) Face to face dimensions: ANSI B16.10
4) Socket weld end: ANSI B16.11
5) Screwed end: ANSI B1.20.1
6) Flanged end: ANSI B16.5
7) Fire safe: API607, API6FA

Specifications:
1) Size: 1/4" to 6"
2) Class: 150LB to 2500LB
3) Type: Floating ball, full bore or reduced bore, soft seated or metal seated, side entry, two-piece/three-piece
4) Material: A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, MONEL, ALLOY 20 etc
5) Operation: Lever.

Materials of body/bonnet and trim

Body/bonnet WCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc.
Ball SS304/SS316/S304L/SS316L
Seat PTFE, NYLON, METAL TO METAL



Type of operation: lever, gear, electric or pneumatic actuator etc.

Standard materials of parts

No. Parts Materials
1 R-Body ASTM A216 WCB
2 Bonnet bolt ASTM A193 B7
3 Bonnet nut ASTM A194 2H
4 Gasket PTFE
5 L-body ASTM A216 WCB
6 Ball SS304
7 Seat ring PTFE
8 Stem ASTM A182 F6
9 Stem seat PTFE
10 Stem packing PTFE
11 Gland flange ASTM A216 WCB
12 Lever Cast Steel
13 Small ball SS304
14 Small spring SS304


Dimensions (in mm & inch) and weight
Class 150

DN 15 20 25 40 50 65 80 100 150 200 250 350
NPS 1/2 3/4 1 1.1/2 2 2.1/2 3 4 6 8 10 12
L(RF) 108 117 127 165 178 191 203 229 394 457 533 610
L1(BW) 140 152 165 190 216 241 283 305 457 521 559 635
L2(RTJ) 119 129.7 139.7 178 191 203 216 241 406 470 546 622
H 59 63 75 95 153 165 195 213 272 342 495 622
Do (W) 130 130 160 230 400 400 600 850 1100 1500 *350 *350
RF (Kgs) 2.3 3 4.5 7 15 20 25 40 97 160 240 390
BW (Kgs) 2 2.5 3.8 5.8 12 17 21 36 92.8 154 227 365



Class 300

DN 15 20 25 40 50 65 80 100 150 200
NPS 1/2 3/4 1 1.1/2 2 2.1/2 3 4 6 8
L(RF) 140 152 165 190 216 241 283 305 403 502
L1(BW) 140 152 165 190 216 241 283 305 457 521
L2(RTJ) 151 164.7 177.7 202.7 232 257 298 321 419 518
H 59 63 75 107 153 165 195 213 272 342
Do (W) 130 130 160 230 400 400 600 850 1100 1500
RF (Kgs) 2.5 3.5 5.5 10.5 20 25 31 52 118 200
BW (Kgs) 2.1 3 4.8 8.7 17 22 28 48 105 185



Class 600

DN 15 20 25 40 50 65 80
NPS 1/2 3/4 1 1.1/2 2 2.1/2 3
L(RF) 165 190 216 241 292 330 356
L1(BW) 165 190 216 241 292 330 356
L2(RTJ) 163.4 190 216 241 295 333 359
H 59 63 75 107 153 165 195
Do(W) 130
