Pneumatic Actuated Butterfly Valve

Brand Name : STV

Model Number : D673F

Place of Origin : CHINA

MOQ : 10PCS

Price : 100USD/PCS

Supply Ability : 100PCS/WEEK

Delivery Time : 25-30 WORKING DAYS

Packaging Details : STANDARD EXPORT PAKING

Contact Now



Product Details:



Specifications

1. High quality and good price
2. Size: DN50-DN1000; Pressure:PN10/PN16
3. Pneumatic actuator
3. NBR/EPDM seat

Pneumatic Operated Wafer Butterfly Valve

Specification:

Size: 2”-24” / 50mm – 600 mm

Design standard: API 609, BS EN 593, MSS SP-67.

Face-to-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67.

Flange Drilling: ANSI B 16.1, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E, JIS B2212/2213 5K, 10K, 16K.

Test: API 598.



Pressure & Temperature ratings:

Working Pressure PN10 / PN16
Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.
Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)
Suitable Media Water, Oil and gas.



Materials:

Parts Materials
Body Cast iron, ductile iron, carbon steel, stainless steel
Disc Nickel ductile iron / Al bronze / Stainless steel
Seat EPDM / NBR / VITON / PTFE
Stem Stainless steel / Carbon steel
Bushing PTFE
“O” ring

PTFE



Buy cheap Pneumatic Actuated Butterfly Valve product

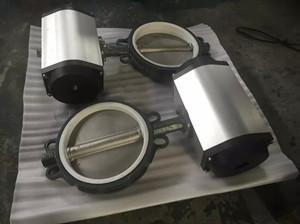

Pneumatic Actuated Butterfly Valve Images
